MQTT Settings of ubidots.com

Step 1. create variables

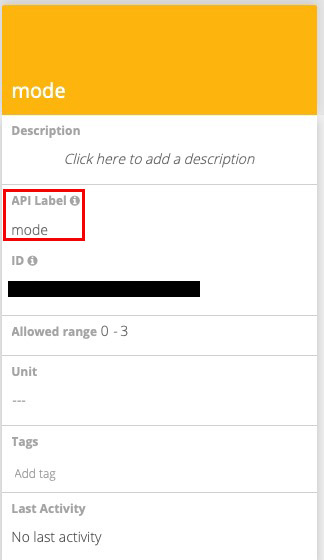

Go to the device page, add variables,say “mode” and “settemp”.

Make sure the “api label” is correctly set.

Step 2. create controls

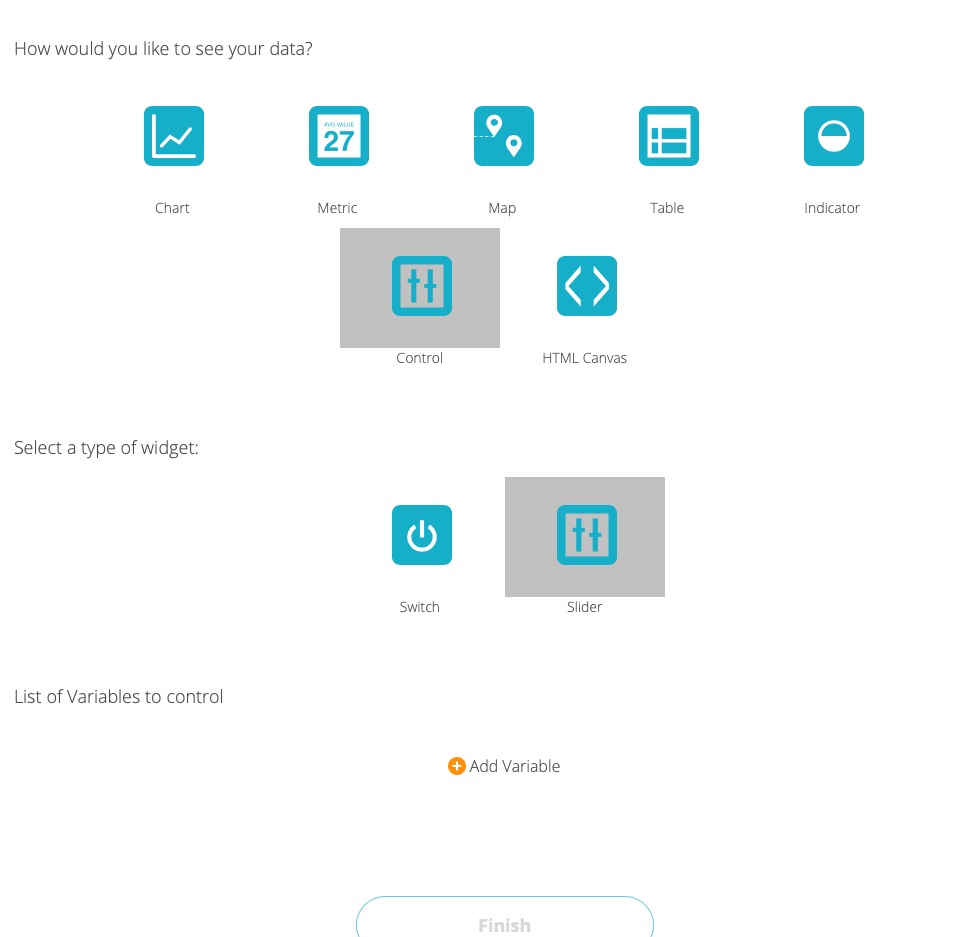

Go to dashboard. Click “+”(Add widget) to add a slider control:

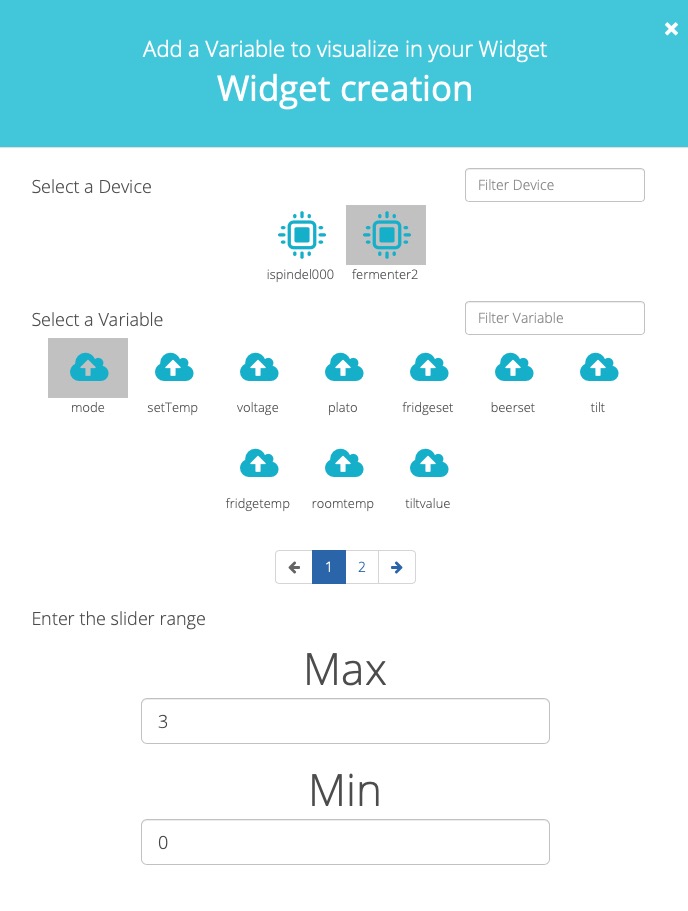

Choose the just added variable, mode: Set the range 0-3, while 0 is off, 1 is “Fridge Constant”, 2 is “Beer Constant”, and 3 is “Beer Profile”.

Do the same to the “settemp” variable with correct ranges.

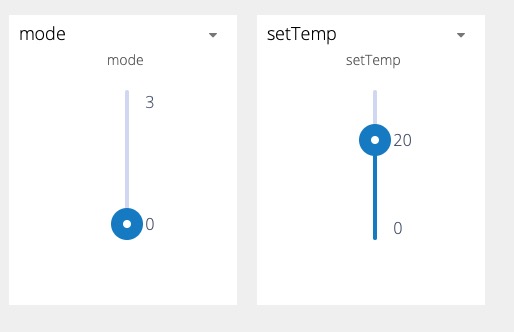

Now you will have it.

Settings for ubidots.com

Get the full information from Ubidots Docs.

For free/educational users, use

• MQTT Server: things.ubidots.com
• MQTT Port : 1883
• User Name: [ubidots token]
• Password: (left blank)

The path is in format of ‘/v1.6/devices/{DEVICE_LABEL}/{LABEL_VARIABLE}/lv’. Let the device label be ‘fermenter2’ and mode and setting temperature variables be ‘mode’, and ‘settemp’.

• Mode path: /v1.6/devices/fermenter2/mode/lv
• beerSet or fridgeSet path: /v1.6/devices/fermenter2/settemp/lv

Usage

Slide the mode slider to change mode and settemp slider to change temperature.
